Inconel Sheet, Plate Manufacturer, Supplier In Mumbai India

Alpha Overseas is the most reputable manufacturer, supplier, and exporter of high-quality Inconel/ Incoloy Sheets/ Plates in various forms, shapes, sizes, dimensions, and other specifications. We produce these Inconel/Incoloy Sheets & Plates under Indian and International quality standards by utilising the best equipment and the strictest industrial norms. We are the top provider of the Incoloy Plate in the nation. Our mission is to provide everyone with high-quality goods at affordable prices.

Nickel-chromium and iron alloy Inconel Sheets/ Plates are specifically made to function in environments where excellent resistance to corrosion and heat is required. These Inconel sheets and plates exhibit exceptional resistance to oxidation at high temperatures and aqueous solutions. Similar to this, Incoloy Sheets & Plates are frequently used for building materials and machinery due to their high strength and heat resistance.

Inconel Sheet Suppliers, Inconel Plate Price, Inconel Plate Manufacturers, Incoloy Sheet Supplier, Inconel Plate, Incoloy Alloy Plates, Inconel® Alloy Sheet, Inconel Plates Supplier in Mumbai, India.

We produce these Inconel/Incoloy Sheets and Plates in various forms, such as Inconel Hot Rolled Sheets & Plates, Incoloy Cold Rolled Sheets & Plates, Inconel Shim Sheets, Incoloy Chequered Plates, and others. These sheets and plates come in various grades, including Inconel 600, Incoloy 625, Incoloy 601, Inconel 800, Incoloy 825, etc.

Features of Inconel/ Incoloy Sheets/ Plates:

  • Carbon, nickel, chromium, molybdenum, silicon, sulphur, copper, ferrous, aluminium, and titanium make up the chemical makeup of the Incoloy plate.
  • These plates display significant corrosion and oxidation resistance in all kinds of media. Inconel Sheet has been engineered with superior mechanical qualities.
  • These sheets' minimum yield strength and tensile strength, respectively, are 205Mpa and 520Mpa.
  • The Inconel Plate has many applications and is frequently used in nuclear fuel, boilers, heat exchangers, condensers, chemical industries, and other equipment. Our high-grade Incoloy/Inconel sheets and plates are in great demand across several sectors, including shipbuilding and building materials.

Incoloy Sheet Specifications

Standards ASTM B168, B443, B670, B409, B424 / ASME SB168, SB443, SB670, SB409, SB424
Dimensions ASTM, ASME, and API
Inconel Plate thickness ranges from .0125″ to 5.00″
Inconel Sheet thickness range from .008″ to .0125″
Sheets / plates Size 15NB to 150NB In
Value added services for Plates Waterjet cutting, Plasma cutting, Laser cutting, Bending and mechanical processing, edge preparation, welding, sawing and shearing
Hardness Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Types Sheets, Plates

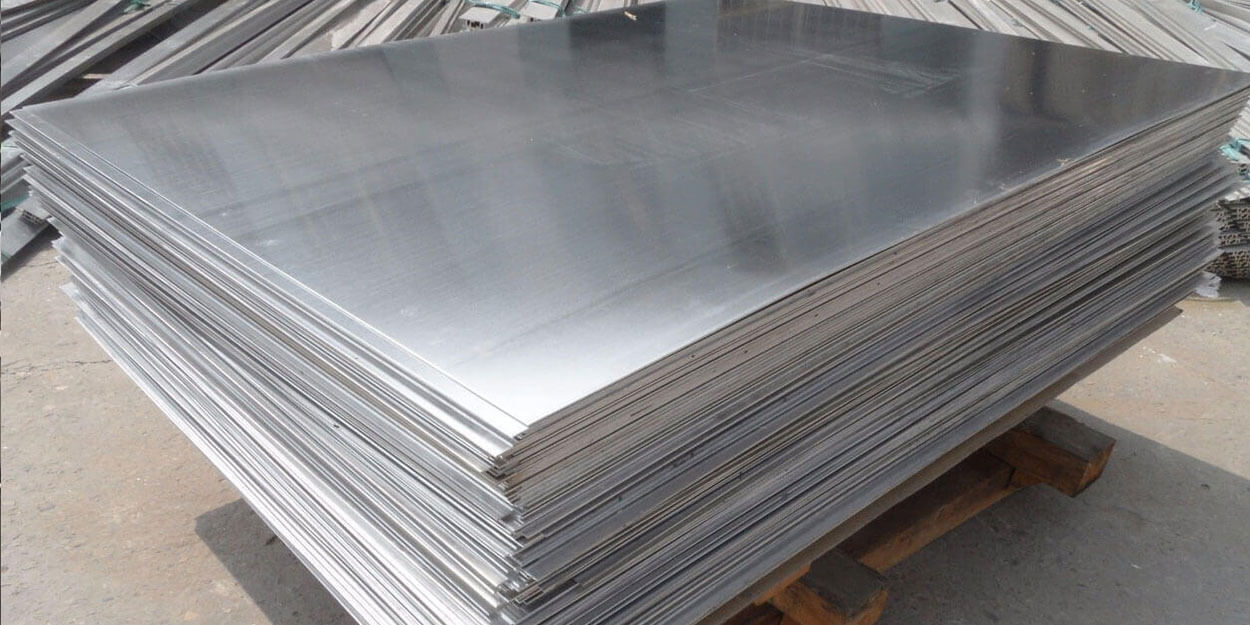

Inconel Sheet, Plate

Inconel Sheets Plate Thickness Tolerance Chart

Gauge LB/Sq. Ft. LB/Sq In. Plate Gauge Tolerance
72″ Wide 96″ Wide
3/16 0.1875 8.579 0.05958 +.045″ -.010″ +.050″ -.010″
7/32 0.2187 9.870 0.06854
1/4 0.2500 11.162 0.07750
5/16 0.3125 13.746 0.09546
3/8 0.3750 16.496 0.11456 +.055″ -.010″ +.060″ -.010″
7/16 0.4375 19.080 0.13250
1/2 0.5000 21.633 0.15044
9/16 0.5625 24.247 0.16838
5/8 0.6250 26.831 0.18633
11/16 0.6875 29.415 0.20427
3/4 0.7500 32.123 0.22308 +.060″ -.010″ +.065″ -.010″
13/16 0.8125 34.707 0.24102
7/8 0.8750 37.291 0.25897
15/16 0.9375 39.875 0.27691
1 1.0000 42.665 0.29628 +.070″ -.010″ +.075 -.010″
1-1/8 1.1250 47.833 0.33217
1-1/4 1.2500 53.001 0.36806
1-3/8 1.3750 58.169 0.40395
1-1/2 1.5000 63.337 0.43984
1-3/4 1.7500 73.672 0.51161
2 2.0000 84.008 0.58339 +.125″ -.010″ +.150″ -.010″
2-1/8 2.1250 89.610 0.62229
2-1/4 2.2500 94.777 0.65817
2-1/2 2.5000 105.113 0.72995
2-3/4 2.7500 115.449 0.80173
3 3.0000 126.301 0.87709 +.150″ -.010″ +.160″ -.010″
3-1/2 3.5000 146.972 1.02064
4 4.0000 168.264 1.16850 +.180″ -.010″ +.200″ -.010

Incoloy Plate Thickness Chart In Mm

Plate Thickness
(mm)
Plate Weight
(kg/m2)
2.0 15.7
1.6 12.6
3 23.6
2.5 19.6
3.2 25.1
5 39.3
4 31.4
6 47.1
10 78.5
8 62.8
12.5 98.1
20 157
15 118
22.5 177
30 236
25 196
32 251
40 314
35 275
45 353
55 432
50 393
60 471
70 550
65 510
75 589
250 1963
90 707
80 628
150 1178
100 785
120 942
110 864
130 1051
180 1413
160 1256
200 1570

Inconel Sheets and Plates Thickness Tolerance


Plate Width (w), in. [mm]
Specified Thickness (t), in. [mm] w > 144 [ 3658] 84 [2134] < w ≤ 120 [3048] w ≤ 84 [2134] 120 [3048] < w ≤ 144 [3658]

Tolerance Over Specified Thickness, *** in. [mm]
3/4 [19.05] ≤ t < 1 [25.04] 0.100 [2.54] 0.065 [1.65] 0.060 [1.52] 0.085 [2.16]
8 [203.2] ≤ t < 10 [254.0] 0.550 [14.0] 0.335 [8.50] 0.315 [8.00] 0.435 [11.0]
2 [ 50.80] ≤ t < 3 [76.20] 0.200 [5.08] 0.150[3.80] 0.125 [3.20] 0.175 [4.45]
3/16 [4.76] ≤ t < 3/8 [9.52] -- 0.050 [1.27] 0.045 [1.14] 0.085 [2.16]
t < 3/16 [4.76] -- 0.070 [1.78] 0.055 [1.35] --
1 [25.40] ≤ t < 2 [50.80] 0.115 [2.92] 0.075 [1.90] 0.070 [1.78] 0.095[2.41]
4 [101.6] ≤ t < 6 [152.4] 0.355 [9.02] 0.200 [5.08] 0.180 [4.75] 0.335 [8.50]
3 [76.20] ≤ t < 4 [101.6] 0.225 [5.72] 0.160 [4.06] 0.150 [3.81] 0.200 [5.08]
6 [152.4] ≤ t < 8 [203.2] 0.435 [11.0] 0.255 [6.48] 0.235 [6.00] 0.355 [9.02]

Incoloy Sheets & Plate Standard Size Chart

2000MM X 1000MM X 3MM 2000MM X 1000MM X 6MM
2500MM X 1250MM X 4MM 2500MM X 1250MM X 8MM
3000MM X 1500MM X 3MM 3000MM X 1500MM X 6MM
3000MM X 1500MM X 4MM 3000MM X 1500MM X 8MM
2000MM X 1000MM X 5MM 2500MM X 1250MM X 10MM
2500MM X 1250MM X 3MM 2500MM X 1250MM X 6MM
4000MM X 2000MM X 3MM 4000MM X 2000MM X 6MM
2500MM X 1250MM X 5MM 3000MM X 1500MM X 10MM
2000MM X 1000MM X 4MM 2000MM X 1000MM X 8MM
4000MM X 2000MM X 4MM 2000MM X 2000MM X 10MM
3000MM X 1500MM X 5MM

Different Types of Inconel Plate

Sheets

Inconel Sheets

  • ASME SB168 Inconel Sheets
  • ASTM B424 Incoloy Sheet
  • Incoloy® Alloy Sheets
Plates

Inconel Plates

  • Incoloy® Alloy Plates
  • ASME SB168 Inconel Plates
  • ASTM B424 Incoloy Plate
Coils

Inconel Coils

  • Inconel HR Coil
  • Inconel Cold Rolled Coil
  • ASTM B424 Inconel Coil

Contact us to get a quick quote for your requirement.

We offer These Inconel Sheet, Plate as per DIN, ISO, JIS or ANSI / ASME Standard.
