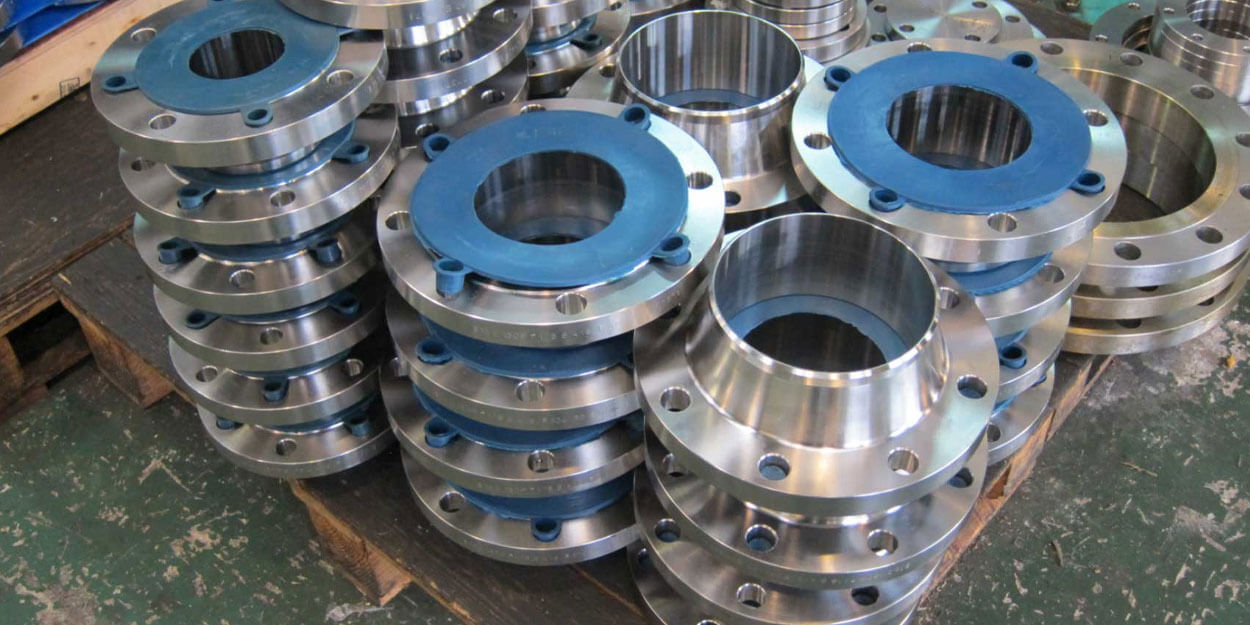

Alpha Overseas is a major manufacturer and supplier of SS 304L Flanges. Stainless Steel 304L is a low-carbon variant of stainless steel 304. stainless steel 304L Flanges display resistance to corrosion and help in the prevention of product contamination. It also exhibits resistance to oxidation.
Stainless Steel 304L has ease of fabrication and excellent formability. It also has an attractive appearance along with ease of cleaning. Stainless steel 304 Flanges have High strength with low weight, good strength and toughness at cryogenic temperatures. Stainless steel 304 flanges are readily available in various product forms.
SS 304L Flange, A182 F304L Flange, 304L Stainless Steel Flanges, 304L SS Flanges Suppliers, Stainless Steel 304L Flange, F304L Material Weld Neck Flange, UNS S30403 Slip On Flange, Stainless Steel 304L Pipe Flanges, Stainless Steel 304L Flanges Manufacturers in India.
Stainless Steel 304L Flanges are covered by numerous constructions or use of equipment made from these alloys for certain circumstances. Examples include uses in sanitary, cryogenic, food and beverage, and pressure-containing environments. For welded items that may be exposed to elements that could lead to intergranular corrosion in use, type 304L is employed.
Chromium carbides may form in grain boundaries when 18-8 austenitic stainless steels are exposed to temperatures in the 800°F to 1500°F (427° to 816°C) range. When these steels are subjected to hostile environments, they become "sensitized" and vulnerable to intergranular corrosion. The carbon content of 304 may make it possible for sensitization to develop from the heat-affected zones of autogenous welds. Due to this, applications where the material is used in its as-welded state, are favoured for the low carbon Type 304L alloy. Low carbon content prolongs the amount of time needed for dangerous levels of chromium carbides to precipitate, but it does not stop the precipitation reaction for material maintained for extended periods of time at the temperature range for precipitation.
304L Stainless Steel Flanges Equivalent Grades
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 304L | 1.4306 / 1.4307 | S30403 | SUS 304L | 3304S11 | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
SS 304L Flange Dimensions
| NPS (in.) |
304L Stainless Steel Flange Dimensions | ||||
|---|---|---|---|---|---|
| Dia. of Flange (in.) |
No. of Bolts |
Dia. of Bolts (in.) |
Dia. of Bolt Holes (in.) |
Bolt Circle (in.) |
|
| 1/4 | 3-3/8 | 4 | 1/2 | 0.62 | 2-1/4 |
| 1/2 | 3-1/2 | 4 | 1/2 | 0.62 | 2-3/8 |
| 3/4 | 3-7/8 | 4 | 1/2 | 0.62 | 2-3/4 |
| 1 | 4-1/4 | 4 | 1/2 | 0.62 | 3-1/8 |
| 1-1/4 | 4-5/8 | 4 | 1/2 | 0.62 | 3-1/2 |
| 1-1/2 | 5 | 4 | 1/2 | 0.62 | 3-7/8 |
| 2 | 6 | 4 | 5/8 | 0.75 | 4-3/4 |
| 2-1/2 | 7 | 4 | 5/8 | 0.75 | 5-1/2 |
| 3 | 7-1/2 | 4 | 5/8 | 0.75 | 6 |
| 3-1/2 | 8-1/2 | 8 | 5/8 | 0.75 | 7 |
| 4 | 9 | 8 | 5/8 | 0.75 | 7-1/2 |
| 5 | 10 | 8 | 3/4 | 0.88 | 8-1/2 |
| 6 | 11 | 8 | 3/4 | 0.88 | 9-1/2 |
| 8 | 13-1/2 | 8 | 3/4 | 0.88 | 11-3/4 |
| 10 | 16 | 12 | 7/8 | 1 | 14-1/4 |
| 12 | 19 | 12 | 7/8 | 1 | 17 |
| 14 | 21 | 12 | 1 | 1.12 | 18-3/4 |
| 16 | 23-1/2 | 16 | 1 | 1.12 | 21-1/4 |
| 18 | 25 | 16 | 1-1/8 | 1.25 | 22-3/4 |
| 20 | 27-1/2 | 20 | 1-1/8 | 1.25 | 25 |
| 24 | 32 | 20 | 1-1/4 | 1.38 | 29-1/2 |
SS 304L Flanges Weight Chart
| Pipe Normal Diameter (inch) | Outer diameter Flange | Thicjness Of Flange Minimum | Diameter of Hub |
Diameter of Raised Face | Length Hub.Y | Thread Length | Diameter of Bolt Circle |
Diameter of Bolt Holes |
Number of Bolts |
Diameter of Bolts (inch) |
KG | LB | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/2" | 15 | 89.00 | 11.20 | 30.20 | 35.10 | 15.70 | 15.70 | 60.50 | 15.80 | 4 | 1/2" | 0.4 | 0.9 |
| 3/4" | 20 | 98.50 | 12.70 | 38.10 | 42.90 | 15.70 | 15.70 | 69.90 | 15.80 | 4 | 1/2" | 0.7 | 1.5 |
| 1" | 25 | 108.00 | 14.20 | 49.30 | 50.80 | 17.50 | 17.50 | 79.30 | 15.80 | 4 | 1/2" | 0.8 | 1.8 |
| 1-1/4" | 32 | 117.50 | 15.70 | 58.70 | 63.50 | 20.60 | 20.60 | 88.90 | 15.80 | 4 | 1/2" | 1.2 | 2.6 |
| 1-1/2" | 40 | 127.00 | 17.50 | 65.00 | 73.20 | 22.40 | 22.40 | 98.60 | 15.80 | 4 | 1/2" | 1.5 | 3.3 |
| 2" | 50 | 152.50 | 19.10 | 77.70 | 91.90 | 25.40 | 25.40 | 120.70 | 19.10 | 4 | 5/8" | 2.3 | 5.1 |
| 2-1/2" | 65 | 178.00 | 22.40 | 90.40 | 104.60 | 28.40 | 28.40 | 139.70 | 19.10 | 4 | 5/8" | 3.7 | 8.1 |
| 3" | 80 | 190.50 | 23.90 | 108.00 | 127.00 | 30.20 | 30.20 | 152.40 | 19.10 | 4 | 5/8" | 4.1 | 9 |
| 3-1/2" | 90 | 216.00 | 23.90 | 122.20 | 139.70 | 31.80 | 31.80 | 177.80 | 19.10 | 8 | 5/8" | 5.1 | 11.2 |
| 4" | 100 | 228.50 | 23.90 | 134.90 | 157.20 | 33.30 | 33.30 | 190.50 | 19.10 | 8 | 5/8" | 5.9 | 13 |
| 5" | 125 | 254.00 | 23.90 | 163.60 | 185.70 | 36.60 | 36.60 | 215.90 | 22.40 | 8 | 3/4" | 7 | 15.4 |
| 6" | 150 | 279.50 | 25.40 | 192.00 | 215.90 | 39.60 | 39.60 | 241.30 | 22.40 | 8 | 3/4" | 8.4 | 18.5 |
| 8" | 200 | 343.00 | 28.40 | 246.10 | 269.70 | 44.50 | 44.50 | 298.50 | 22.40 | 8 | 3/4" | 13 | 28.6 |
| 10" | 250 | 406.50 | 30.20 | 304.80 | 323.90 | 49.30 | 49.30 | 362.00 | 25.40 | 12 | 7/8" | 18 | 39.5 |
| 12" | 300 | 482.50 | 31.80 | 365.30 | 381.00 | 55.60 | 55.60 | 431.80 | 25.40 | 12 | 7/8" | 29 | 64 |
| 14" | 350 | 533.50 | 35.10 | 400.10 | 412.80 | 57.20 | 57.20 | 476.30 | 28.50 | 12 | 1" | 39 | 86 |
| 16" | 400 | 597.00 | 36.60 | 457.20 | 469.90 | 63.50 | 63.50 | 539.80 | 28.50 | 16 | 1" | 47 | 103 |
| 18" | 450 | 635.00 | 39.60 | 505.00 | 533.40 | 68.30 | 68.30 | 577.90 | 31.80 | 16 | 1 1/8" | 57 | 126 |
| 20" | 500 | 698.50 | 42.90 | 558.80 | 584.20 | 73.20 | 73.20 | 635.00 | 31.80 | 20 | 1 1/8" | 76 | 167 |
| 24" | 600 | 813.00 | 47.80 | 663.40 | 692.20 | 82.60 | 82.60 | 749.30 | 35.10 | 20 | 1 1/4" | 97 | 214 |
Stainless Steel 1.4306 Flanges Types
SS 304L Slip On Flange
- ASTM A182 F304L Stainless Steel SOFF Flange
- 304L SS SORTJ
- ASTM A182 GR F304L Slip On Pipe Flange
- PN16 Slip On Flange Inox AISI 304L
- AISI 304L SO Flanges
- 304L Stainless Steel SORF Flange
- SS UNS S30403 Slip-On Flange
- Stainless Steel 304L Raised Face Slip On Flange
- F304L Stainless Steel RFSO Flanges
- SUS 304L Flat Face Slip On Flanges
- 304L SS FFSO Flanges
- Steel 1.4306 Slip On Raised Face Flange
- SS 304L Pipe Slip On Flange
SS 304L Weld Neck Flange
- S30403 Steel Weld Neck Flanges
- AISI 304L RFWN Flange
- Stainless Steel 304L WNRTJ Flange
- SUS304L WNFF Flangs
- 304L SS Raised Face Weld Neck Flange
- Steel 304L Welding Neck Flanges
- SS 304L Flat Face Weld Neck Flange
- ASTM A182 F304L Stainless Weld Neck Flange 300
- 304L Stainless Steel Weld Neck Flanges
- WERKSTOFF NR. 1.4307 WNRF Flanges
- SS 304L Weld Neck Flanges ANSI B16.5
- ASME SA182 F304L Welding Neck Flanges 150#
SS 304L Blind Flange
- Stainless Steel 304L BLRF Flange
- 304L Stainless Steel BLRTJ Flange
- UNS S30403 Stainless Steel BLFF Flanges
- Stainless Steel 304L Blind Flanges
- Steel 304L Blind Plate Flanges
- 304L SS Blind Pipe Flanges
- 304L SS BLFF Flanges
- ASTM A182 F304L Stainless Steel BLRTJ Flange
- INOX 304L Pipe Blind Flange
- ASME B16.5 SS 304L Blind Raised Face Flange
- Stainless Steel 1.4306 RTJ Blind Flange
- SA182 F304L SS BL Flange
SS 304L Threaded Flange
- ASME SA182 F304L SS Screwed Flanges
- Stainless Steel 304L 3 inch Threaded Pipe Flanges
- 304L SS Male Threaded Flange
- ASTM A182 F304L Stainless Steel NPT Threaded Flange
- SS 304L Raised Face Threaded Flange
- SS 304L Threaded Pipe Flange
- AISI 304L Stainless Steel Female Threaded Flange
- Steel 304L Grade Threaded Flange
- UNS S30403 Reducing Threaded Flange
- Stainless Steel 304L Threaded Flanges
- ASTM A182 F304L Stainless Steel Thread Flange
SS 304L Socket weld Flange
- UNS S30403 Socket Weld Raised Face Flange
- AISI 304L Flat Face Socket Weld Flange
- 304L Stainless Steel RFSW Flanges
- SS 304L Raised Face Socket Weld Flanges
- Stainless Steel 1.4306 SWFF Flanges
- 304L SS SWRTJ Flanges
- Stainless Steel 304L SWRF Flanges
- ASME SA182 F304L SS Flange sw rf
- SUS 304L Socket Weld Pipe Flange
- Steel Grade 304L Socket Welding Flange
- ASME B16.5 Stainless Steel 304L SW Flange
- 304L Stainless Steel 300# Socket Weld Flange
SS 304L Long Weld Neck Flange
- ASTM A182 304L Stainless Steel LWNRF Flanges
- SS 304L Raised Face Long Weld Neck Flange
- Stainless Steel 304L RFLWN Flange
- 304L SS Long Welding Neck Flange
- Stainless Steel UNS S30403 LWN Flange
- SS 304L ASME B16.5 Long Weld Neck Flanges
- Stainless Steel 304L Long Welding Neck Flanges
- AISI 304L SS Long Weld Neck Raised Face Flange
- 304L Stainless Steel LWN Flanges
SS 304L Lap Joint Flange
- ANSI B16.5 Steel 304L Lapped Joint Flange
- 304L Stainless Steel Flat Face Lap Joint Flange
- SS 304L Flange Lap Joint
- Stainless Steel 304L LJ Flanges
- ASME SA182 F304L SS LJ Flanges
- SS S30403 Lap Joint Pipe Flange
- Stainless Steel A182 F304L LJFF Flange
- 304L SS LJRF Flanges
- SS 304L Lap Joint Flange with stub end
- Stainless 304L Flange Lap Joint Stub End
- 304L Stainless Steel Lap Joint Flange
- SUS 304L Raised Face Lap Joint Flange
SS 304L Plate Flange
- UNS S30403 Plate Flanges
- Stainless Steel 304L Plate Flange
- SS 304L ANSI B16.5 Plate Flanges
- 304L SS Plate Flanges
- Stainless Steel 1.4306 Plate Flanges
- ASME SA182 F304L SS Plate Flange en 1092
- SS 304L din 2501 pn10 plate flange
- 304L Stainless Steel Plate Flanges
- ASTM A182 F304L Stainless Steel Plate Flange
- AISI 304L Plate Flanges Class 150
SS 304L Orifice Flange
- AISI 304L Raised Face Orifice Flanges
- UNS S30403 Steel Orifice Flanges
- 304L SS Orifice Flanges
- ANSI B16.36 SS 304L Orifice Flanges
- SS 304L Orifice Plate Flange
- ASME SA182 F304L SS RTJ Orifice Flange
- ASTM A182 F304L Orifice Pipe Flange
- 304L Stainless Steel Class 150 Orifice Flange
- Stainless Steel 1.4307 Orifice Flanges
- 304L SS Orifice Flanges
- 304L SS ASME B16.36 Orifice Flange
- Stainless Steel 304L Orifice Flanges
Specialized in Following ASTM A182 F304L Stainless Steel Flanges
- Stainless Steel 1.4306 Spacer Ring Flanges
- Stainless Steel 304L Flange Suppliers
- SS 304L Industrial Pipe Flange
- AISI Type 304L Stainless Steel Loose Plate Flange
- ASTM A182 F304L Pipe Flanges
- ASME B16.5 Steel 304L Pipe Flange Spacer Ring
- 304L SS Paddle Blank and Spacer
- Stainless Steel 304L Flanges Suppliers in India
- ASTM A182 304L Stainless Steel Flange
- Stainless Steel A182 F304L Forged Flanges
- Stainless Steel 304L Groove Flange
- 304L Stainless Steel Flange Manufacturer
- ANSI/ASME B16.5 304L SS Flange Supplier in Mumbai
- 304L SS Flange Manufacturer in Mumbai
- SS 304L Flat Face Flanges
- Inox 304L Large Tongue Flange Stock
- UNS S30403 Large Diameter Flange
- Grade 304L Stainless Steel Slip On Plate Flange
- Manufacturer of Stainless Steel 304L Flanges
- Stainless Steel 304L Reducing Flange
- SUS304L Tongue and Groove Flanges Dealers
- Stainless Steel 304L Ring Type Joint Flanges
- 304L Stainless Steel Flangeolet
- 304L Stainless Steel Spectacle Blind Flanges
- ASTM A182 304L Stainless Steel Nipoflange
- ASTM A182 Stainless Steel 304L Flanges
- 304L SS Flange Pressure Rating
- Stainless Steel 304L Flat Face Flange
- Stainless Steel 304L Flanges Stockist
- 304L Stainless Steel Exhaust Flanges
- Supplier of SS 304L Slip On Flat Face Flange
- ASTM A182 SS 304L Paddle Blind Flange
- Steel Grade 304L Blind Spectacle Flange
- 304L Stainless Steel Custom Flanges
- Stainless Steel 304L NPT Flanges
- 304L Stainless Steel Raised Face Flange
- Stainless Steel 304L RTJ Flange Exporter
- SS 304L Flanges at Best Price List In India
UNS S30403 Flange Pressure Rating Chart
| ASME | Pressure Temperature Ratings For Stainless Steel 304L Flanges | ||||||
| Temperature °F | Class 150 | Class 300 | Class 400 | Class 600 | Class 900 | Class 1500 | Class 2500 |
| -20 to 100 | 275 | 720 | 960 | 1440 | 2160 | 3600 | 6000 |
| 200 | 230 | 600 | 800 | 1200 | 1800 | 3000 | 5000 |
| 300 | 205 | 540 | 720 | 1080 | 1620 | 2700 | 4500 |
| 400 | 190 | 495 | 660 | 995 | 1490 | 2485 | 4140 |
| 500 | 170 | 465 | 620 | 930 | 1395 | 2330 | 3880 |
| 600 | 140 | 435 | 580 | 875 | 1310 | 2185 | 3640 |
| 650 | 125 | 430 | 575 | 860 | 1290 | 2150 | 3580 |
| 700 | 110 | 425 | 565 | 850 | 1275 | 2125 | 3540 |
| 750 | 95 | 415 | 555 | 830 | 1245 | 2075 | 3460 |
| 800 | 80 | 405 | 540 | 805 | 1210 | 2015 | 3360 |
| 850 | 65 | 395 | 530 | 790 | 1190 | 1980 | 3300 |
| 900 | 50 | 390 | 520 | 780 | 1165 | 1945 | 3240 |
| 950 | 35 | 380 | 510 | 765 | 1145 | 1910 | 3180 |
| 1000 | 20 | 320 | 430 | 640 | 965 | 1605 | 2675 |
| 1050 | 20 | 310 | 410 | 615 | 925 | 1545 | 2570 |
| 1100 | 20 | 255 | 345 | 515 | 770 | 1285 | 2145 |
| 1150 | 20 | 200 | 265 | 400 | 595 | 995 | 1655 |
| 1200 | 20 | 155 | 205 | 310 | 465 | 770 | 1285 |
| 1250 | 20 | 115 | 150 | 225 | 340 | 565 | 945 |
| 1300 | 20 | 85 | 115 | 170 | 255 | 430 | 715 |
| 1350 | 20 | 60 | 80 | 125 | 185 | 310 | 515 |
| 1400 | 20 | 50 | 65 | 95 | 145 | 240 | 400 |
| 1450 | 15 | 35 | 45 | 70 | 105 | 170 | 285 |
| 1500 | 10 | 25 | 35 | 55 | 80 | 135 | 230 |
SS 304L Flange HSN Code
| HSN Code | Product Description |
| 73072100 | HS or HSN Codes for stainless steel flange |
SS 304L Flange Price List India
Check out the 304L Stainless Steel Flange Price List.
| Stainless Steel 304L Flange in India | SS 304L Flange Price in INR |
| Stainless Steel Flanges A182 F304L, 150, 300, 600 LBS, 900 LBS, 1500#, Class 2500 | Rs. 224 |
| Flanges A182 F304L B16.5 | Rs. 5,163 |
| 304L Stainless Steel Class 150 Flanges as per ASME B 16.5 | Rs. 3,514 |
| Pn16 Dn65 Dn80 SUS SS 304L Flange | Rs. 195 |
| 304L Stainless Steel Plate Flange | Rs. 4,190 |
| Stainless Steel Flange 304L | Rs. 5,903 |
Stainless Steel 304L Flanges Standard
For more information on flange standards, or to learn more about custom flanges for particular specifications, contact us today.
ASME Flanges
ANSI Flanges
ASTM Flanges
AWWA Flanges
MSS flanges
DIN flanges
EN Flanges
ISO Flanges
JIS Flanges
GOST Flanges
UNI Flanges
API Flanges
Chemical Composition of SA 182 F304L Stainless Steel Flanges
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | – | 8 – 13 |
304L SS Flanges Mechanical Properties
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 304L | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
Applications of Stainless Steel 304L Flanges
Oil & Gas Industry
Power Generation Industry
Petrochemical Industry
Chemical Industry
Cement Industry
We Export Stainless Steel 304L Flanges Across the Globe
Canada, Gambia, Bulgaria, Serbia, Kuwait, Ukraine, Poland, Chile, Denmark, Libya, Algiera, Ghana, Greece, Lebanon, Thailand, Russia, China, Israel, Colombia, Jordan, Italy, Morocco, Finland, Taiwan, Peru, South Africa, Australia, Kenya, Lithuania, Macau, Sri Lanka, Nepal, Belarus, Zimbabwe, Kazakhstan, Namibia, Bangladesh, Spain, Bhutan, Venezuela, Oman, Angola, Malaysia, Turkey, Vietnam, Afghanistan, Brazil, Sweden, United Arab Emirates, South Korea, Pakistan, Netherlands, Nigeria, Estonia, New Zealand, Tunisia, Singapore, Lahore, Croatia, Egypt, Austria, Switzerland, Mexico, Mongolia, Iran, Portugal, Saudi Arabia, Yemen, United States, Czech Republic, Germany, Algeria, Indonesia, Puerto Rico, Ireland, Japan, columbia, India, France, Norway, Argentina, Belgium, Qatar, Hungary, Iraq, Gabon, Bolivia, United Kingdom, Costa Rica, Ecuador, Romania, Bahrain, Hong Kong, Philippines, Azerbaijan, Slovakia, Tibet, Trinidad & Tobago.
Domestic Supply A182 Gr F304L Flanges
Rajkot, Howrah, Surat, Faridabad, Ernakulam , Indore, Bengaluru, Jaipur, Kolkata, Bhopal, Noida, Nagpur, Ranchi, Kanpur, Haryana, mumbai, New Delhi, Visakhapatnam, Navi Mumbai, Thiruvananthapuram, Secunderabad, Chandigarh, Hyderabad, Pune, Nashik, Chennai, Ahmedabad, Thane, Jamshedpur, Gurgaon, Pimpri-Chinchwad, Ludhiana.
